Phoenix Spectrum Plus LS6010 Fire Safe | Up to 90 Minutes
Spectrum Plus LS6010 Fire Protection Safes
Click to enlarge
Features

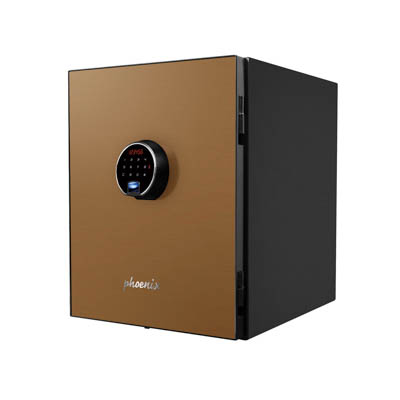

Phoenix Spectrum Plus LS6010 Fire Protection Safes
The Phoenix Spectrum Plus LS6010 Series combines fire-protected storage with secure access and a contemporary appearance. The range is designed for organisations and premises where important documents, valuables and selected digital media need to be stored securely while remaining protected against fire.
Fire-Protected Storage for Documents
The Spectrum Plus range provides a dedicated place for storing important paperwork where fire protection is an important consideration. This makes the range suitable for business records, certificates, contracts and other documents that may be difficult or impossible to replace.
Different levels of fire protection are available within the LS6010 Series. The exact protection periods and applicable fire-test standards are listed in the Specification section below.
Storage for Digital Media
The Spectrum Plus can also provide protected storage for selected digital media alongside conventional paper documents and valuables.
Because the requirements for protecting digital media differ from those for paper, check the technical specification for the applicable test standard and protection period before selecting a safe for this purpose.
Contemporary Safe Design
The LS6010 Series has been designed to provide a more contemporary appearance than a conventional utility-style safe. Its dark grey body is complemented by interchangeable stainless steel door panels, allowing the appearance of the safe to be adapted to its surroundings.
This can be useful in offices, reception areas and other commercial interiors where the safe may remain visible rather than being concealed in a dedicated storage area.
Choosing a Spectrum Plus Safe
The range includes different safe sizes and configurations. Selection should take account of the amount and type of material that needs to be stored, the available installation space and the preferred access configuration.
Use the product selector above to compare the available options. Exact model dimensions, capacities, weights and configuration information are provided in the Specification section.
Controlled Access
The Spectrum Plus range uses electronic and fingerprint-based access rather than relying solely on a conventional key-operated lock. This can provide a practical solution where access needs to be restricted to authorised users.
The detailed lock functions, user controls and fingerprint capacity vary by the product specification and are therefore listed separately with the technical information below.
Organised Internal Storage
The internal layout is intended to help organise documents, keys and smaller valuables rather than providing only an empty storage compartment.
The quantity and arrangement of shelves, drawers and key hooks are technical product details and are shown in the Specification section.
Planning the Installation
Before ordering, check the intended position of the safe and the route by which it will be moved into place. Doorways, corridors, stairs and other restricted access points should be considered, particularly when selecting the larger configuration.
Allow sufficient space for normal door operation and convenient access to the contents. Exact dimensions, weight and fixing information should be checked against the selected model before installation.
Before Ordering
Select the appropriate Spectrum Plus configuration according to the required storage space, fire-protection requirement and access needs. Product dimensions, exact fire ratings, test standards, lock functions, fixing information, product tables and frequently asked questions should remain in the Specification section below.
Specification
Specification sheetPhoenix Spectrum Plus LS6010 Technical Specification
The Phoenix Spectrum Plus LS6010 Series includes the LS6011F and LS6012F models. Compare the exact dimensions, fire protection, locking features and internal fittings below before selecting the required safe.
LS6010 Model Comparison
| Specification | LS6011F | LS6012F |
|---|---|---|
| External dimensions H x W x D | 515 x 405 x 470 mm | 640 x 500 x 530 mm |
| Internal dimensions H x W x D | 410 x 300 x 300 mm | 515 x 380 x 330 mm |
| Door swing | 410 mm | 410 mm |
| Weight | 60 kg | 60 kg |
| Capacity | 36 litres | 36 litres |
| Shelves | 1 | 1 |
| Drawers | 1 | 1 |
| Internal key hooks | 4 | 4 |
Fire Protection Specification
| Protection | Specification |
|---|---|
| LS6011F paper fire protection | NT Fire 017-60 Paper |
| LS6012F paper fire protection | NT Fire 017-90 Paper |
| Maximum paper protection | Up to 90 minutes |
| Digital media fire test | MTC DIP120-60DM |
| Digital media protection | 60 minutes |
| Digital media examples | DVDs, USB drives, memory sticks and hard drives |
Locking and Security Features
| Feature | Specification |
|---|---|
| Lock type | Touchscreen keypad and fingerprint lock |
| Display | LED display |
| Fingerprint capacity | Up to 32 fingerprints |
| User functions | Dual control and multi-user control |
| Code functions | Hidden code and scrambled code |
| Recommended overnight cash risk | £2,000 |
| Recommended valuables rating | £20,000 |
Installation and Internal Features
| Feature | Specification |
|---|---|
| Floor fixing | Prepared for floor fixing |
| Fixing bolts | Concrete fixing bolts supplied |
| Drop test | Drop tested from 9.1 metres |
| Interior lighting | LED interior light |
| Internal shelf | 1 height-adjustable shelf |
| Internal drawer | 1 pull-out drawer |
| Key storage | 4 internal key hooks |
| Safe finish | Scratch-resistant dark grey finish |
| Door panels | Interchangeable stainless steel panels available in 4 colours |
Technical Document
Phoenix Spectrum Plus LS6010 Specification Sheet
Related Safe Ranges
Compare other fireproof safes, browse our complete safe range, or view value safes.
Phoenix Spectrum Plus LS6010 FAQs
How long does the Phoenix Spectrum Plus LS6010 protect paper documents from fire?
The LS6011F is tested to NT Fire 017-60 Paper, while the LS6012F is tested to NT Fire 017-90 Paper, providing up to 90 minutes of fire protection for paper documents.
Does the Spectrum Plus protect digital media?
Yes. The Spectrum Plus is tested to the MTC DIP120-60DM standard and provides 60 minutes of fire protection for specified digital media including DVDs, USB drives, memory sticks and hard drives.
What type of lock is fitted to the Phoenix Spectrum Plus?
The safe is fitted with a touchscreen keypad and fingerprint lock with an LED display.
How many fingerprints can the Spectrum Plus store?
The lock can be programmed with up to 32 fingerprints. It also provides dual-control and multi-user functions.
What are the dimensions of the LS6011F?
The LS6011F measures 515 mm high x 405 mm wide x 470 mm deep externally. Its internal dimensions are 410 x 300 x 300 mm.
What are the dimensions of the LS6012F?
The LS6012F measures 640 mm high x 500 mm wide x 530 mm deep externally. Its internal dimensions are 515 x 380 x 330 mm.
Can the Spectrum Plus safe be fixed to the floor?
Yes. The safe is prepared for floor fixing and fixing bolts for installation into concrete are supplied.
What internal storage fittings are supplied?
The listed models include one adjustable shelf, one pull-out drawer and four internal key hooks, together with LED interior lighting.
What is the recommended cash and valuables rating?
The stated recommendation is an overnight cash risk of £2,000 or valuables of £20,000. Requirements should also be checked with the relevant insurer where insurance cover is required.
Where can I compare other fireproof safes?
See our fireproof safes for other fire-resistant storage options, or browse our complete safe range.
