Locker Lock Compatibility Guide UK: Will Your Replacement or Upgrade Fit? (2026)

Locker lock compatibility is the process of checking whether a replacement, upgrade or retrofit lock will physically fit an existing locker door, fixing point and locking system. The right lock must match the door thickness, fixing hole, cam position, body depth, spindle length and user requirements before it is ordered.

This guide explains how to check locker lock compatibility before replacing keyed locks, fitting combination locks, upgrading to electronic locks or repairing existing lockers. It is designed for schools, workplaces, gyms, leisure centres, offices, factories and facilities teams that need the correct locker lock first time.

This page supports the main locker locks UK guide by helping buyers check whether a replacement, retrofit or upgrade lock will physically fit an existing locker door.

Quick answer: A compatible locker lock must fit the existing locker door cut-out, suit the door thickness, align with the locking cam or hasp, clear the locker frame and provide the right access method for the site. Always check dimensions before choosing a replacement or upgrade.

For lock options, view our locker lock range, or compare lock types in our locker locks UK guide.

Why locker lock compatibility matters

Locker locks are not always interchangeable. Two locks may look similar from the front, but the fixing method, cam size, spindle length, nut position or lock body depth may be different.

Choosing the wrong lock can cause several problems. The lock may not fit the door. The cam may not reach the frame. The lock may foul the locker body. The key may turn but fail to secure the door. Electronic locks may also need extra internal clearance.

Compatibility checks are especially important when replacing old locks, upgrading from key locks to combination locks, retrofitting electronic locks or restoring lockers from discontinued ranges.

Locker lock compatibility checklist

Check	Why it matters	What to measure
Door thickness	The lock must clamp securely to the door	Thickness of the locker door in mm
Fixing hole	The lock body must pass through the door correctly	Hole size, shape and position
Cam length	The cam must engage with the frame or locking point	Distance from lock centre to locking edge
Cam offset	The cam must sit at the correct depth	Flat, cranked or stepped cam profile
Body depth	The lock must not hit shelves, frame parts or locker contents	Depth behind the door
Spindle length	Important for handles, combination locks and some upgrades	Distance through the door and mechanism
Fixing footprint	Old screw holes or fixing points may need matching	Screw spacing and fixing plate size
Usage type	The lock must suit the way the locker is used	Assigned, shared, coin, key, code or digital use

1. Check the locker door thickness

Door thickness is one of the first compatibility checks. A locker lock must clamp firmly to the door without sitting loose or failing to tighten fully.

Most metal locker doors are relatively thin, but timber, laminate, plastic and heavy-duty locker doors may be thicker. Some replacement locks include fixing nuts or collars designed for a limited door thickness range.

If the door is too thick, the lock may not secure properly. If the door is too thin, the lock may need washers, spacers or a different fixing method.

2. Check the fixing hole size and shape

The fixing hole is the opening in the locker door where the lock fits. This is a critical measurement because the new lock body must pass through the existing cut-out.

Some locks use round fixing holes. Others use shaped, double-D or notched holes to stop the lock rotating in the door. A lock may fit through the hole but still fail if the anti-rotation shape does not match.

When replacing an existing lock, remove the old lock if possible and measure the cut-out directly. Do not rely only on the visible face of the lock.

3. Check cam length and cam position

The cam is the metal arm that turns behind the locker door. It is the part that catches behind the frame, side return or locking channel.

Cam compatibility matters because the lock can fit the door but still fail to secure the locker. If the cam is too short, it will not reach the frame. If it is too long, it may hit the locker body or prevent the door from closing.

Measure from the centre of the lock barrel to the point where the cam needs to engage. Also check whether the cam is flat, cranked, stepped or offset.

4. Check lock body depth

Lock body depth is often missed during upgrades. It becomes especially important when fitting electronic locker locks, digital combination locks or RFID locks.

A standard cam lock may have a small body behind the door. An electronic lock may need more internal space for the casing, battery compartment, keypad housing or latch mechanism.

Check the space behind the door before ordering. Shelves, folded door returns, inner frames and compartment dividers can all reduce available clearance.

5. Check the fixing footprint

The fixing footprint is the area covered by the lock face, fixing plate, screw holes or mounting body. This matters when replacing locks on existing lockers because old holes, marks or cut-outs may remain visible.

A replacement lock should either match the old fixing footprint or cover the previous fixing marks neatly. Where this is not possible, adapter plates or alternative locks may be needed.

This check is important for customer-facing areas such as gyms, leisure centres, offices and schools where appearance matters as well as function.

6. Check spindle length and handle compatibility

Some locker locks use a spindle or turning mechanism rather than a simple cam barrel. Spindle length affects how the lock passes through the door and operates the internal mechanism.

This is common with certain combination locks, coin locks, digital locks and handle-operated systems. If the spindle is too short, the lock may not operate correctly. If it is too long, it may foul the mechanism or sit incorrectly on the door face.

Compatibility by lock type

Lock type	Main compatibility checks	Best used for
Keyed cam locks	Barrel size, cam length, cam offset, door thickness	Assigned lockers and simple replacements
Mechanical combination locks	Fixing hole, spindle length, body depth, usage mode	Schools, workplaces and keyless access
Coin return locks	Door prep, coin mechanism clearance, cam position	Leisure centres, gyms and shared-use lockers
Electronic locks	Body depth, battery access, fixing footprint, clearance	Modern offices, gyms and managed locker systems
RFID locks	Internal clearance, reader position, management system	Smart lockers and access-controlled sites
Padlock fittings	Hasp position, staple alignment, door/frame clearance	Low-cost shared or personal padlock use

Replacing keyed locker locks

Keyed locker locks are usually the simplest to replace, but the cam still needs to match the old locking point. The barrel diameter, door thickness and cam length are the main checks.

If the locker is still in good condition, replacement keyed locks can extend its working life without replacing the full locker. This is useful for workplaces, schools, staff rooms and industrial sites.

For more detail, read our replacement locker locks UK guide and keyed locker locks UK guide.

Upgrading from key locks to combination locks

Upgrading from key locks to combination locks can reduce lost key issues, but compatibility must be checked carefully. Combination locks often have a larger front body and deeper rear mechanism than basic cam locks.

Check the fixing hole, door thickness, body depth and cam position before ordering. Also decide whether the locker will be assigned to one person or used by different users throughout the day.

For selection support, read our keyed vs combination locker locks guide and locker combination locks UK guide.

Retrofitting electronic locker locks

Electronic locker lock retrofits need extra care. These locks can offer better management, keyless access and improved user control, but they usually need more space than a simple keyed lock.

Check the lock body depth, battery access, fixing footprint, door strength and clearance behind the door. Also consider how codes, cards, fobs or management keys will be controlled on site.

Electronic upgrades work best when the existing locker doors are strong, flat and in good condition. Damaged, twisted or heavily worn doors may need repair or replacement before an upgrade is suitable.

Electronic upgrades need extra clearance and fixing checks. For more detail, read our locker electronic locks UK guide and smart locker systems UK guide.

For more guidance, read our locker electronic locks UK guide and smart locker systems UK guide.

Retrofitting locks to old lockers

Older lockers can often be repaired or upgraded, but measurements become more important when the original lock type is obsolete. Old lockers may have non-standard holes, unusual cams or worn locking channels.

Before replacing obsolete locks, check whether the locker door still closes squarely. A new lock will not solve problems caused by bent doors, damaged hinges or distorted frames.

If the old lock is no longer available, the best option may be a compatible replacement lock, an adapted cam, a new fixing plate or a wider locker refurbishment plan.

Shared-use versus assigned-use compatibility

Compatibility is not only physical. The lock must also suit how the locker is used.

• Assigned-use lockers are usually best with keyed locks, assigned combination locks or managed digital locks.
• Shared-use lockers often need coin locks, free-use combination locks, electronic locks or RFID locks.
• High-turnover areas need locks that are easy to reset, manage and maintain.
• Public areas may need stronger, anti-vandal or supervised lock systems.

For usage planning, read our locker locks for shared use vs assigned use guide.

Common compatibility mistakes

• Ordering a lock based only on the front appearance.
• Ignoring cam length and cam offset.
• Assuming all locker doors have the same thickness.
• Choosing an electronic lock without checking rear clearance.

If you already know the lock type you need, compare your measurements with our locker lock replacement guide UK and locker lock parts and spares guide.

• Replacing a lock when the real fault is a bent door or damaged frame.
• Changing lock type without considering shared-use or assigned-use operation.
• Forgetting master key, override key or management access requirements.
• Buying replacement locks without checking whether the old range is obsolete.

What to measure before ordering locker locks

Before ordering replacement locker locks, record the following details:

• Locker brand or model, if known.
• Door material and door thickness.
• Existing lock type.
• Fixing hole size and shape.
• Cam length from lock centre.
• Cam shape, offset and rotation direction.
• Internal clearance behind the door.
• Whether the lock is for assigned or shared use.
• Whether master key or override access is needed.
• How many locks are required.

Clear photographs are also useful. Take one photo of the front of the lock, one of the rear of the lock with the door open and one close-up of the cam or fixing point.

When to replace the lock and when to replace the locker

Replacing the lock is usually worthwhile when the locker door, hinges and frame are still in good condition. It is often the most cost-effective option when keys are lost, locks are worn or access control needs to be improved.

Replacing the full locker may be better when doors are badly damaged, frames are distorted, corrosion is severe or the locking channel no longer holds securely.

For wider planning, read our locker lock replacement guide and locker lock maintenance guide.

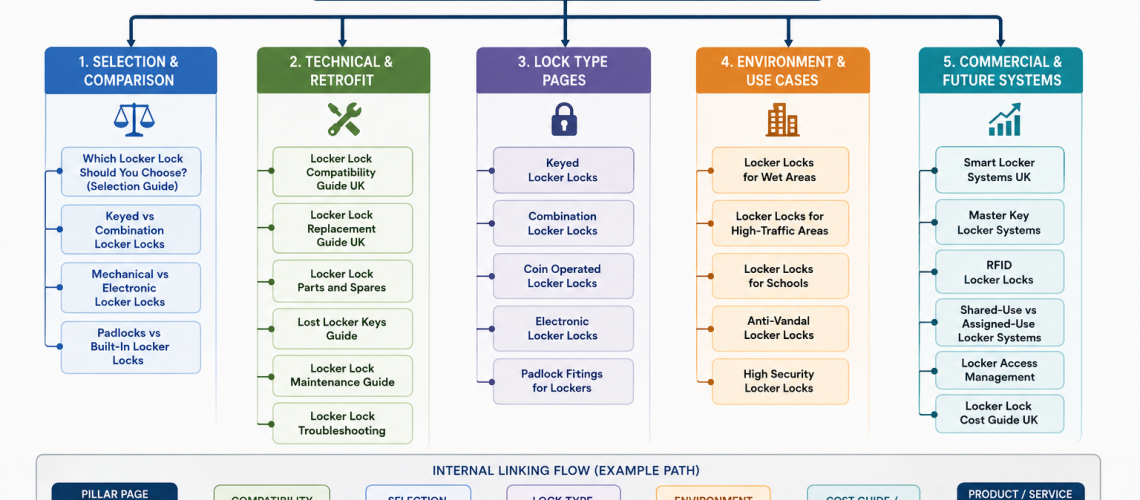

Best internal links to this page

This compatibility guide should be linked from any page where the reader may need to check whether a lock will fit before buying, replacing or upgrading.

Source page	Suggested anchor text	Best placement
Locker Locks UK guide	locker lock compatibility	Selection section and upgrade section
Replacement Locker Locks UK	check locker lock compatibility	Before ordering section
Locker Lock Replacement Guide	replacement lock compatibility	Measurement checklist section
Locker Electronic Locks UK	electronic locker lock retrofit compatibility	Retrofit and upgrade section
Smart Locker Systems UK	retrofit locker lock compatibility	Legacy locker upgrade section
Locker Lock Maintenance Guide	compatible replacement locker locks	Repair or replace section
Locker Lock Parts and Spares	cam lock compatibility	Cam, barrel and fixing section
Keyed vs Combination Locker Locks	key to combination lock upgrade compatibility	Upgrade comparison section

Choosing the right compatible locker lock

The best compatible lock is not always the most advanced lock. It is the lock that fits the door, works with the frame, suits the user model and can be maintained easily.

For simple assigned-use lockers, a keyed cam lock may be enough. Sites with lost key problems, a mechanical combination lock may be better. For shared-use gyms, leisure centres and offices, coin locks, digital locks or RFID systems may be more suitable.

If you are unsure, measure the existing lock and door first. Then compare the physical fit, access method and management needs before choosing the final lock type.

Need help matching a locker lock?

Total Locker Service can help identify compatible locker locks, replacement locks, locker lock parts and upgrade options. Useful details include the existing lock type, locker brand, door thickness, cam measurements and clear photos of the lock from the front and rear.

Call 01284 749211 or view our locker lock products for replacement and upgrade options.

For broader selection advice, use the locker lock selection guide UK before choosing between keyed, combination, coin and electronic systems.

FAQ: Locker lock compatibility

Are all locker locks the same size?

No. Locker locks can vary by barrel size, fixing hole, cam length, cam offset, door thickness range, body depth and fixing footprint. Always check measurements before ordering a replacement.

Can I replace a keyed locker lock with a combination lock?

Often, yes, but compatibility must be checked first. The fixing hole, door thickness, cam position and rear clearance must suit the combination lock.

Can electronic locker locks be fitted to old lockers?

Sometimes. The locker door must be strong enough, the fixing position must be suitable and there must be enough internal clearance for the lock body and battery compartment.

What is a locker lock cam?

The cam is the metal arm behind the lock that turns to secure the locker door. Its length, shape and offset are important compatibility checks.

Why does cam length matter?

Cam length decides whether the lock can reach the locking point inside the locker. If the cam is too short or too long, the locker may not lock correctly.

What should I measure before buying a replacement locker lock?

Measure the door thickness, fixing hole, cam length, cam offset, lock body depth and fixing footprint. Also check whether the locker is for shared use or assigned use.

Can I use the same lock on metal and timber lockers?

Not always. Timber and laminate doors may be thicker than metal doors, so the fixing length and lock body must be checked carefully.

What if my old locker lock is obsolete?

A compatible alternative may still be available. You may need to match the cam, use an adapter plate or choose a different lock type that suits the existing door and locking point.

Do replacement locker locks come with cams?

Many replacement locks are supplied with a cam, but the supplied cam may not always match the existing locker. Cam length and offset should still be checked.

Can a new lock fix a damaged locker door?

Only if the lock is the faulty part. If the door is bent, the hinge is damaged or the frame is distorted, the locker may need repair before a new lock will work properly.
