Phoenix Tarvos UF0600 Underfloor Security Safes
Phoenix Tarvos UF0600 Safes for Concealed Underfloor Security
Click to enlarge
Features

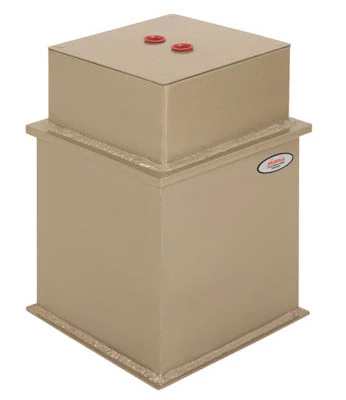

Tarvos UF0600 Underfloor Security Safes
The Tarvos UF0600 Series provides concealed secure storage for cash, valuables and other important items by positioning the main safe body below floor level.
The range offers several security configurations, allowing a model to be selected according to the value of the contents, required storage capacity and the available installation space.
Concealed Underfloor Security
An underfloor safe provides a discreet alternative to a conventional freestanding safe. Once installed, the main body of the Tarvos remains below floor level while access is retained through the safe door.
This makes the range particularly suitable where secure storage is required without placing a large visible safe within the room.
Choosing the Appropriate Tarvos Safe
The UF0600 Series includes different levels of security protection. When selecting a model, consider the value and quantity of the items that need to be protected rather than selecting on physical size alone.
A higher-security model may be appropriate where the value of the stored cash or valuables is greater, while capacity should also allow for future storage requirements.
Secure Storage for Cash and Valuables
The Tarvos range can be used where cash, valuables and other important items need to be kept separately from normal working or publicly accessible areas.
The different configurations allow the safe to be matched more closely to the security requirement instead of using the same specification for every application.
Planning an Underfloor Safe Installation
Installing an underfloor safe requires consideration of both the location of the safe and the construction of the floor.
Before ordering, check that the intended position provides sufficient space for the selected model and allows convenient access to the safe after installation.
The Tarvos is intended for installation within a solid floor, so the installation requirements should be considered before the surrounding area is finished.
Access to the Safe
The position of an underfloor safe should provide practical access for authorised users while allowing the storage location to remain discreet during normal use.
Consider how frequently the contents will need to be accessed and whether the position of furniture, flooring or other equipment could restrict access to the safe door.
Selecting the Required Capacity
The internal space required will depend on the type and quantity of items being stored. Allowing some additional capacity can be useful where the amount of cash, documents or valuables may increase over time.
Use the product selector above to compare the available Tarvos configurations before choosing the required model.
Tarvos Underfloor Safe Specification
The UF0600 models differ in security rating, lock specification, construction and other technical details.
Exact cash and valuables cover, model sizes, locking systems, door and body construction, bolt and re-locker specifications, deposit options, interior finish, fixing information, colour, product comparison tables and frequently asked questions should remain in the Specification section below.
Specification
Please see our technical documentation for this product below Tarvos UF0600 Underfloor Safes
Tarvos UF0600 Underfloor Safe Specification
The Phoenix Tarvos UF0600 Series consists of underfloor security safes with four security configurations and a choice of two safe sizes. Depending on the selected model, the range uses either a high-security 7-lever key lock or a double-bitted VdS Class I key lock.
Tarvos UF0600 Security Specification
| Feature | Specification |
|---|---|
| Product type | Underfloor security safe |
| Safe sizes | 9-inch cube and 12-inch cube |
| Security configurations | 4 |
| Cash and valuables protection | Range stated from £2,000 cash up to £100,000 valuables |
| Keys supplied | 2 keys |
| Installation | Designed for installation into a solid concrete floor |
| Interior | Fully flocked |
| Finish | Gold Hammer paint |
Tarvos UF0600 Lock Options
| Model | Lock specification | Keys supplied |
|---|---|---|
| UF0620 | High-security 7-lever key lock | 2 |
| UF0640 | High-security double-bitted VdS Class I key lock | 2 |
| UF0660 | High-security double-bitted VdS Class I key lock | 2 |
| UF0610 | High-security double-bitted VdS Class I key lock | 2 |
Door Construction by Model
| Model | Door protection | Bolting and re-locking |
|---|---|---|
| UF0620 | Hardened plate | Angled dead bolt |
| UF0640 | 6mm hardened plate | 25mm diameter spring-loaded front bolt and 25mm diameter dead bolt |
| UF0660 | 6mm hardened plate | Two 25mm diameter spring-loaded front bolts, two 20mm diameter spring-loaded re-lockers and a 25mm diameter dead bolt |
| UF0610 | 6mm hardened plate with copper laminate between two 10mm mild-steel plates for ABP protection | Two 25mm diameter spring-loaded front bolts, two 20mm diameter spring-loaded re-lockers and a 25mm diameter dead bolt |
Body Construction
| Component | Construction |
|---|---|
| Neck | 5mm mild-steel tube, 4 inches high |
| Top plate | 10mm mild steel |
| Body | 2mm mild steel |
| Base | 3mm mild steel |
| Seams | Continuously welded |
Re-locker Protection
The UF0660 and UF0610 specifications include two 20mm diameter spring-loaded re-lockers designed to activate if the lock is tampered with.
Interior Finish
The Tarvos UF0600 has a fully flocked interior to help protect stored valuables from surface damage.
Floor Fixing
The Tarvos is designed for installation into a solid concrete floor. Refer to the manufacturer's fixing instructions before installation.
External Finish
The UF0600 Series is finished in Gold Hammer paint.
Deposit Variant
The supplied Tarvos specification also identifies the UD0600KD as incorporating a deposit facility with an anti-fish device designed to prevent retrieval through the deposit tube. A selection of deposit capsules is supplied with this version.
Technical Documentation
For the complete manufacturer specification, see the Tarvos UF0600 Underfloor Safes specification.
Related Security Safes
Compare other high security safes, view deposit safes, or browse the complete safe range.
Tarvos UF0600 Underfloor Safe FAQs
How many security configurations are available in the Tarvos UF0600 range?
The Tarvos UF0600 Series is available with four different security configurations.
What cash and valuables protection does the Tarvos UF0600 provide?
The supplied specification states that the UF0600 range provides protection from £2,000 cash up to £100,000 for valuables. The appropriate model should be selected according to the required level of protection.
What sizes are available in the Tarvos UF0600 Series?
The range is available in 9-inch and 12-inch cube sizes.
What lock is fitted to the Tarvos UF0620?
The UF0620 is supplied with a high-security 7-lever key lock.
Which Tarvos models have a VdS Class I key lock?
The supplied specification identifies the UF0640, UF0660 and UF0610 as fitted with a high-security double-bitted VdS Class I key lock.
How many keys are supplied with a Tarvos underfloor safe?
Each Tarvos UF0600 safe is supplied with 2 keys.
Which Tarvos models include re-locker protection?
The UF0660 and UF0610 specifications include two 20mm diameter spring-loaded re-lockers designed to activate if the lock is tampered with.
How is the Tarvos UF0600 safe body constructed?
The safe has a 5mm mild-steel tube neck, 10mm mild-steel top plate, 2mm mild-steel body and 3mm mild-steel base, with continuously welded seams.
What type of floor is required for a Tarvos underfloor safe?
The supplied fixing information is for installation into a solid concrete floor.
Does the Tarvos UF0600 have a lined interior?
Yes. The Tarvos has a fully flocked interior designed to help protect valuables from damage while stored inside the safe.
What colour is the Tarvos UF0600?
The supplied specification states that the Tarvos UF0600 Series is finished in Gold Hammer paint.
Where can I compare other underfloor and security safes?
View our underfloor safes, compare high security safes, or browse our safe range.
