Modular Cube Storage Lockers
Stackable Cube Lockers for Modular Storage
Click to enlarge
Features

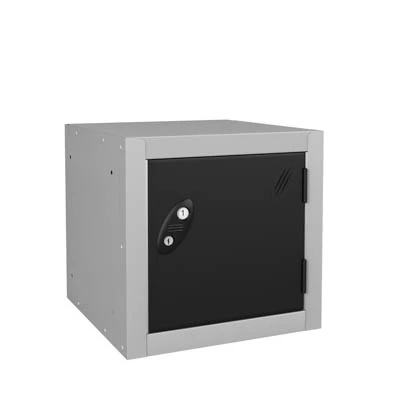

Probe Modular Cube Lockers for Compact Storage
Probe cube lockers provide compact individual storage that can be used alone or combined to create larger modular locker arrangements.
The individual metal locker cubes can be stacked and joined together, allowing storage to be arranged around the available space rather than requiring a conventional full-height locker bank.
This modular format is particularly useful where smaller personal items need to be stored or where unused wall and floor areas could provide additional locker capacity.
Flexible Modular Locker Storage
The main advantage of a cube locker is flexibility. Individual units can form small groups or be combined into larger locker banks according to the available space and number of storage compartments required.
This makes cube lockers useful when a conventional locker configuration would provide more storage height than is needed or would not make the best use of a compact area.
Additional cubes can also be incorporated into a planned layout where more individual storage compartments are required.
Cube Lockers for Schools and Commercial Sites
Probe cube lockers can provide individual storage in schools and commercial environments where users need somewhere to keep smaller personal belongings.
Typical stored items can include books, clothing and shoes, making the modular format useful where a full-height locker is unnecessary.
In schools, cube lockers can provide compact storage for pupils while allowing the overall locker arrangement to be adapted to the available room layout.
Create a Locker Layout to Suit the Available Space
Cube lockers can be arranged into different group sizes rather than being restricted to a single fixed locker-bank format.
Before ordering, consider the available wall and floor area, the number of users requiring storage and the way the completed locker group will be accessed.
Exact product dimensions and available configurations are listed in the Specification section below.
Choosing the Correct Cube Locker Configuration
Start by deciding how many individual storage compartments are required and where the locker group will be positioned.
- Measure the available installation space
- Decide how many individual compartments are required
- Consider whether the lockers will form a small group or larger bank
- Allow suitable access to each locker compartment
- Compare the available product options before ordering
The exact sizes, locking options and other technical choices should be checked in the Specification section before selecting the final configuration.
Help Planning a Cube Locker Installation
For help comparing Probe cube locker configurations or planning a modular locker arrangement, call 01284 749211 or email sales@totallocker.co.uk .
Specification
Probe Cube and Quarto Locker Specification
Technical specifications, dimensions, locking options and colour choices for Probe Cube and Quarto modular metal lockers.
Probe Cube Locker Dimensions
| Height | Width | Depth |
|---|---|---|
| 305mm | 305mm | 305mm |
| 380mm | 380mm | 380mm |
| 460mm | 460mm | 460mm |
Probe Quarto Locker Dimensions
| Height | Width | Depth |
|---|---|---|
| 480mm | 305mm | 305mm |
| 480mm | 305mm | 460mm |
Sloping tops are not available for the Cube or Quarto locker ranges.
Construction and Joining
| Locker construction | Heavy-gauge mild steel |
|---|---|
| Door hinges | Two five-knuckle semi-concealed hinges |
| Modular fixing | Drilled on the sides, top and bottom for joining units together |
| Joining hardware | Nuts and bolts supplied |
| Paint finish | Antibacterial paint |
| Identification | Plastic plate around the lock for a number or name card |
| Optional stand | Locker support stand raises the locker 150mm above floor level |
Probe Cube Locker Locking Options
| Lock option | Type |
|---|---|
| Key lock | Key-operated locker lock |
| Hasp and staple | For use with a suitable padlock |
| Mechanical combination | Keyless combination locking |
| Electronic combination | Electronic coded locking |
| Coin operated | Coin-operated locker locking |
For other locker locking systems, see our locker lock range.
Frame and Door Colours
| Component | Available colours |
|---|---|
| Frame | Silver, White, Black |
| Door | Black, Blue, Green, Red, Silver, White, Yellow |
Technical Documentation
Probe Cube Locker FAQs
What sizes are Probe Cube lockers available in?
Probe Cube lockers are available as 305 x 305 x 305mm, 380 x 380 x 380mm and 460 x 460 x 460mm units.
What size are Probe Quarto lockers?
Probe Quarto lockers are 480mm high and 305mm wide, with either a 305mm or 460mm depth.
Can Probe Cube lockers be joined together?
Yes. The lockers are drilled on the sides, top and bottom so that individual units can be bolted together. Nuts and bolts are supplied with the lockers.
Which locks are available for Probe Cube lockers?
Available options include key locks, hasp and staple locks, mechanical combination locks, electronic combination locks and coin-operated locks. See our locker locks for additional locking information.
Which colours are available?
Frame colours are Silver, White and Black. Door colours are Black, Blue, Green, Red, Silver, White and Yellow.
Can Cube lockers be numbered or named?
Yes. The locker door has a plastic plate around the lock that can be used to display a locker number or name card.
Are support stands available for Probe Cube lockers?
Yes. An optional locker support stand is available to raise the locker 150mm above floor level.
Are sloping tops available for Cube or Quarto lockers?
No. Sloping tops are not available for the Probe Cube or Quarto locker ranges.
Where can I compare other cube lockers?
You can compare the Pure Cube Locker, Quarto Lockers and Quick Cube Lockers. For conventional locker formats, view our metal locker range.
Where can I download the Probe Cube locker specification?
Download the Probe Cube and Quarto locker specification for the technical product information.
Delivery
Delivery Information
The approximate lead time is 20 Working Days.
Delivery to Mainland UK only, without any restrictions.
Our delivery times are; Monday - Friday 8am to 5pm.
We will deliver using the most economical method, using either our own vehicles or a carrier.
Goods may be palletised and delivered on an articulated vehicle.
The deliveries are kerb side only, you will need to arrange to unload the vehicle.
If there are any delivery restrictions / specific dates / times / dedicated deliveries, or FORS Registered deliveries; please contact the sales department as there may be an additional cost.
