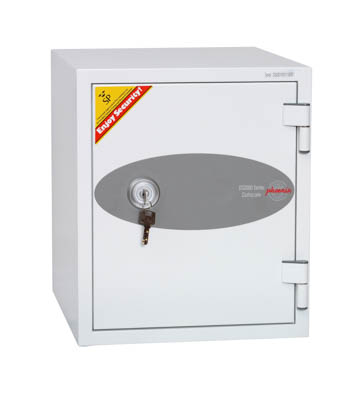

Phoenix DS2000 Series Data Safes for Digital Media
Phoenix DS2000 Series Fireproof Data Safes
Click to enlarge
Features
Phoenix DS2000 Series Fire-Resistant Data Safes
Phoenix DS2000 Series DataCare safes provide tested fire protection for computer backup tapes and digital media such as CDs, DVDs and USB memory sticks. Suitable for homes and workplaces, the range combines fire protection, water resistance and security for valuable or sensitive data media.
The DS2000 Series is available in two safe sizes with key, electronic keypad or fingerprint locking. Fire-protection time, internal capacity and fittings depend on the selected safe size.
DS2000 Data Safe Models
| Specification | DS2001 | DS2002 |
|---|---|---|
| Fire protection | 60 minutes | 90 minutes |
| Test standard | NT Fire 017-60dis | NT Fire 017-90dis |
| External dimensions | 420 mm high × 350 mm wide × 430 mm deep | 600 mm high × 470 mm wide × 470 mm deep |
| Internal dimensions | 240 mm high × 150 mm wide × 195 mm deep | 380 mm high × 245 mm wide × 195 mm deep |
| Internal capacity | 7 litres | 18 litres |
| Weight | 43 kg | 93 kg |
| Shelves | 1 | 2 |
| Internal key hooks | 4 | 3 |
Fire Protection for Computer and Digital Media
DS2001 models are tested to the Swedish NT Fire 017-60dis standard and provide up to 60 minutes of fire protection for computer backup tapes and digital media.
DS2002 models are tested to NT Fire 017-90dis and provide up to 90 minutes of protection for computer backup tapes and digital media.
The DS2000 Series is intended for temperature-sensitive data media. It should not be presented as providing the same tested paper-document protection as the Phoenix DS2500 Data Combi range.
Water-Resistant Inner Compartment
Twin water-resistant seals help create an airtight, water-resistant inner compartment around the stored computer media. This provides additional protection against water that may be present during fire-fighting or following damage to a building.
Available Locking Options
| Suffix | Lock type | Features |
|---|---|---|
| K | Key lock | High-quality key lock supplied with two keys |
| E | Electronic combination lock | LED display, dual control, hidden-code and scrambled-code functions |
| F | Touchscreen and fingerprint lock | LED display, internal alarm, dual control, hidden-code and scrambled-code functions, with storage for up to 128 fingerprints |
Security Protection
Phoenix recommends the DS2000 Series for an overnight cash risk of up to £1,500 or valuables worth up to £15,000. These figures are manufacturer recommendations and should be confirmed with your insurer before ordering.
Construction and Drop Testing
The safe has a double-walled steel body and door filled with fire-resistant barrier material, together with a separate internal door and two live locking bolts.
DS2000 safes are fire and impact tested following a drop of 9.1 metres. This test assesses resistance to the impact associated with falling through a burning floor during a building fire.
Interior Fittings
DS2001 models are supplied with one shelf and four internal key hooks. DS2002 models have two shelves, three internal key hooks and automatic slam-shut locking.
Finish
The DS2000 Series is finished in scratch-resistant White paint, RAL 9003. The neutral finish is suitable for offices, records rooms, IT departments and secure domestic storage areas.
Choosing the Correct DS2000 Data Safe
Choose between the DS2001 and DS2002 according to the required fire-protection period, internal capacity, safe dimensions and preferred locking method. The product code combines the safe size and lock suffix, such as DS2001K, DS2001E, DS2001F, DS2002K, DS2002E or DS2002F.
For paper documents or mixed storage requirements, view our fireproof safes and cabinets . You can also browse the complete commercial and domestic safe range.
For help selecting a Phoenix data safe, call 01284 749211 or email sales@totallocker.co.uk.
Specification
Specification sheetPhoenix DS2000 Series Data Safe Specification
Phoenix DS2000 Series DataCare safes provide tested fire protection for computer backup tapes and digital media such as CDs, DVDs and USB memory sticks. The range is designed for homes, offices, IT departments, records rooms and other locations where temperature-sensitive data media requires secure fire-resistant storage.
Two safe sizes are available. The DS2001 provides 60 minutes of tested fire protection, while the larger DS2002 provides 90 minutes. Each size can be supplied with a key lock, electronic combination lock or touchscreen fingerprint lock.
DS2000 Model Comparison
| Specification | DS2001 | DS2002 |
|---|---|---|
| Fire-test standard | NT Fire 017-60dis | NT Fire 017-90dis |
| Fire protection | Up to 60 minutes | Up to 90 minutes |
| External dimensions | 420 mm high × 350 mm wide × 430 mm deep | 600 mm high × 470 mm wide × 470 mm deep |
| Internal dimensions | 240 mm high × 150 mm wide × 195 mm deep | 380 mm high × 245 mm wide × 195 mm deep |
| Internal capacity | 7 litres | 18 litres |
| Weight | 43 kg | 93 kg |
| Shelves | 1 | 2 |
| Internal key hooks | 4 | 3 |
| Automatic slam-shut locking | Not stated for DS2001 models | Included |
| Live locking bolts | 2 | 2 |
| Colour | White, RAL 9003 | White, RAL 9003 |
Fire Protection for Data and Digital Media
DS2001 models are tested to the Swedish NT Fire 017-60dis standard and provide up to 60 minutes of fire protection for computer backup tapes and digital media.
DS2002 models are tested to NT Fire 017-90dis and provide up to 90 minutes of fire protection for computer backup tapes and digital media.
The published DS2000 specification is intended for temperature-sensitive computer and digital media. It does not state a tested paper-document fire rating. For paper records, compare the appropriate fireproof document safes and cabinets .
Suitable Data Media
| Media type | Examples |
|---|---|
| Computer backup media | Computer backup tapes and other specified data media |
| Optical media | CDs and DVDs |
| Portable digital media | USB memory sticks |
| Other sensitive media | Media confirmed as suitable by the manufacturer or data-media supplier |
Check the storage-temperature requirements of specialist or irreplaceable media before selecting a safe.
Water-Resistant Inner Compartment
Twin water-resistant seals create an airtight, water-resistant inner compartment around the stored computer media. This provides additional protection against water that may enter the safe during fire-fighting or following building damage.
Water-resistant does not mean that the safe is intended for continuous immersion or outdoor use.
Cash and Valuables Rating
| Protection type | Recommended overnight cover |
|---|---|
| Cash cover | Up to £1,500 |
| Valuables cover | Up to £15,000 |
These are manufacturer recommendations. Confirm the required security rating, installation conditions and insurance requirements with your insurer before ordering.
Available Locking Options
| Suffix | Lock type | Main features |
|---|---|---|
| K | Key lock | High-quality key lock supplied with two keys |
| E | Electronic combination lock | Clear LED display with dual-control, hidden-code and scrambled-code functions |
| F | Touchscreen fingerprint lock | LED display, internal alarm, dual-control, hidden-code and scrambled-code functions, with capacity for up to 128 fingerprints |
DS2000 Product Codes
| Product code | Safe size | Locking system | Fire protection |
|---|---|---|---|
| DS2001K | Size 1 | Key lock | 60 minutes |
| DS2001E | Size 1 | Electronic combination lock | 60 minutes |
| DS2001F | Size 1 | Touchscreen fingerprint lock | 60 minutes |
| DS2002K | Size 2 | Key lock | 90 minutes |
| DS2002E | Size 2 | Electronic combination lock | 90 minutes |
| DS2002F | Size 2 | Touchscreen fingerprint lock | 90 minutes |
Construction and Impact Testing
The DS2000 Series has a double-walled steel body and door filled with fire-resistant barrier material. A separate internal door and two live locking bolts provide additional protection for the inner data compartment.
The safes are fire and impact tested following a drop of 9.1 metres. This assesses resistance to the impact associated with falling through a burning floor during a building fire.
Interior Fittings
DS2001 models are supplied with one shelf and four internal key hooks. DS2002 models are supplied with two shelves and three internal key hooks. Automatic slam-shut locking is listed for the DS2002 models.
Finish
The DS2000 Series is finished in high-quality, scratch-resistant White paint, RAL 9003. The neutral finish is suitable for offices, records rooms, IT departments and secure domestic storage areas.
Warranty
Phoenix lists a two-year onsite guarantee against manufacturing defects and a fire warranty for the DS2000 Series. Warranty conditions and registration requirements should be checked at the time of purchase.
Selecting the Correct DS2000 Data Safe
Choose the DS2001 where a compact 7-litre safe and 60-minute data-media rating meet the storage requirement. Select the DS2002 where an 18-litre capacity, 90-minute fire rating, additional shelf or automatic slam-shut locking is required.
The K, E and F suffixes identify the key, electronic and fingerprint lock options. Confirm the complete product code, dimensions and delivery access before ordering, particularly for the 93 kg DS2002 models.
Related Safe Ranges
Browse the complete fireproof safes and cabinets range or view all commercial and domestic safes. Additional products are available from the Phoenix safes range.
For model availability, delivery information or help selecting a data safe, call 01284 749211 or email sales@totallocker.co.uk .
Phoenix DS2000 Series Data Safe FAQs
What does the Phoenix DS2000 Series protect?
The Phoenix DS2000 Series provides tested fire protection for computer backup tapes and digital media such as CDs, DVDs and USB memory sticks. It also provides water resistance and security protection for cash and valuables.
Does the DS2000 have a paper-document fire rating?
The published DS2000 specification states tested protection for computer backup tapes and digital media. It does not state a tested paper-document rating. For paper records, compare the fireproof document safe range .
How long does the DS2001 protect data media?
DS2001 models are tested to NT Fire 017-60dis and provide up to 60 minutes of fire protection for computer backup tapes and digital media.
How long does the DS2002 protect data media?
DS2002 models are tested to NT Fire 017-90dis and provide up to 90 minutes of fire protection for computer backup tapes and digital media.
Is the Phoenix DS2000 waterproof?
The safe is described as water-resistant rather than waterproof. Twin seals create an airtight, water-resistant inner compartment, but the safe is not intended for continuous immersion or outdoor exposure.
What is the Phoenix DS2000 cash rating?
Phoenix recommends the DS2000 Series for an overnight cash risk of up to £1,500 or valuables worth up to £15,000. Confirm the required rating and installation conditions with your insurer.
Which DS2000 locking options are available?
K models use a key lock, E models use an electronic combination lock and F models use a touchscreen fingerprint lock. The fingerprint lock can store up to 128 fingerprints.
What are the DS2001 dimensions and capacity?
The DS2001 measures 420 mm high × 350 mm wide × 430 mm deep externally. It has a 7-litre internal capacity and weighs 43 kg.
What are the DS2002 dimensions and capacity?
The DS2002 measures 600 mm high × 470 mm wide × 470 mm deep externally. It has an 18-litre internal capacity and weighs 93 kg.
Does every DS2000 safe have slam-shut locking?
Automatic slam-shut locking is listed for DS2002 models. It is not stated as a feature of the smaller DS2001 models.
Has the DS2000 Series been drop tested?
Yes. The DS2000 Series has been fire and impact tested following a 9.1-metre drop to assess resistance to falling through a burning floor.
Where can I compare other fire-resistant safes?
View the fireproof safes and cabinets range or browse all commercial and domestic safes supplied by Total Locker Service.
